- 12 Mono Mic/Line Channels (XLR, ¼" Jack, Balanced)
- Mic Input Impedance: 3k
- Line Input Impedance: 47k
- -20dB Attenuation Switch
- Gain potentiometer
- Individual Low (80Hz), Mid (2.5KHz) & Hi (15KHz) EQ potentiometers (-15/+15 dB)
- Effects Send Potentiometer
- Monitor Potentiometer
- Pan Potentiometer
- Level Fader,60mm
- 16 Digital Effect Processor
- Effect Repeat Potentiometer
- Effect Send Level Potentiometer
- Effects Level Fader, 60mm
- Monitor Send Potentiometer
- 2TK Play / MP3-USB Level Potentiometer, Switchable
- MP3-USB / SD Card Media player & Bluetooth module, LCD Screen (Play, Pause, Folder select)
- Headphones Potentiometer
- 48V Phantom switchable Channels 1-9 & Channels 10-12
- Individual Left & Right Master Level Faders, 60mm
- Mix Out Fader, 60mm
- 12 Bar LED Master Level /Mix Out- Monitor Indicators, switchable
- 7 Band Graphic Equaliser, +/- 12dB (100, 250, 500, 1K, 2K, 4K, 8K, Hz)
- Balanced XLR Outputs (Left & Right)
- Unbalanced ¼" Jack Line Outputs (Left & Right)
- RCA Record Output (Left & Right) 10k
- Monitor Unbalanced Output ¼" Jack, 600k
- Mix Unbalanced Output ¼" Jack, 600
- Effect Unbalanced Send ¼" Jack, 600
- 2TK Play, Unbalanced RCA (Left & Right) 10k
- THD: 20-20KHz, <0.1%
- Noise: -120dB @ Max Gain
- Frequency Response: 20-20KHz (+/- 2dB)
- Inbuilt PSU, IEC Mains Connection
- Dimensions: 570mm (Width) 360mm (Depth) 105mm (Height)
- Weight: 5Kg

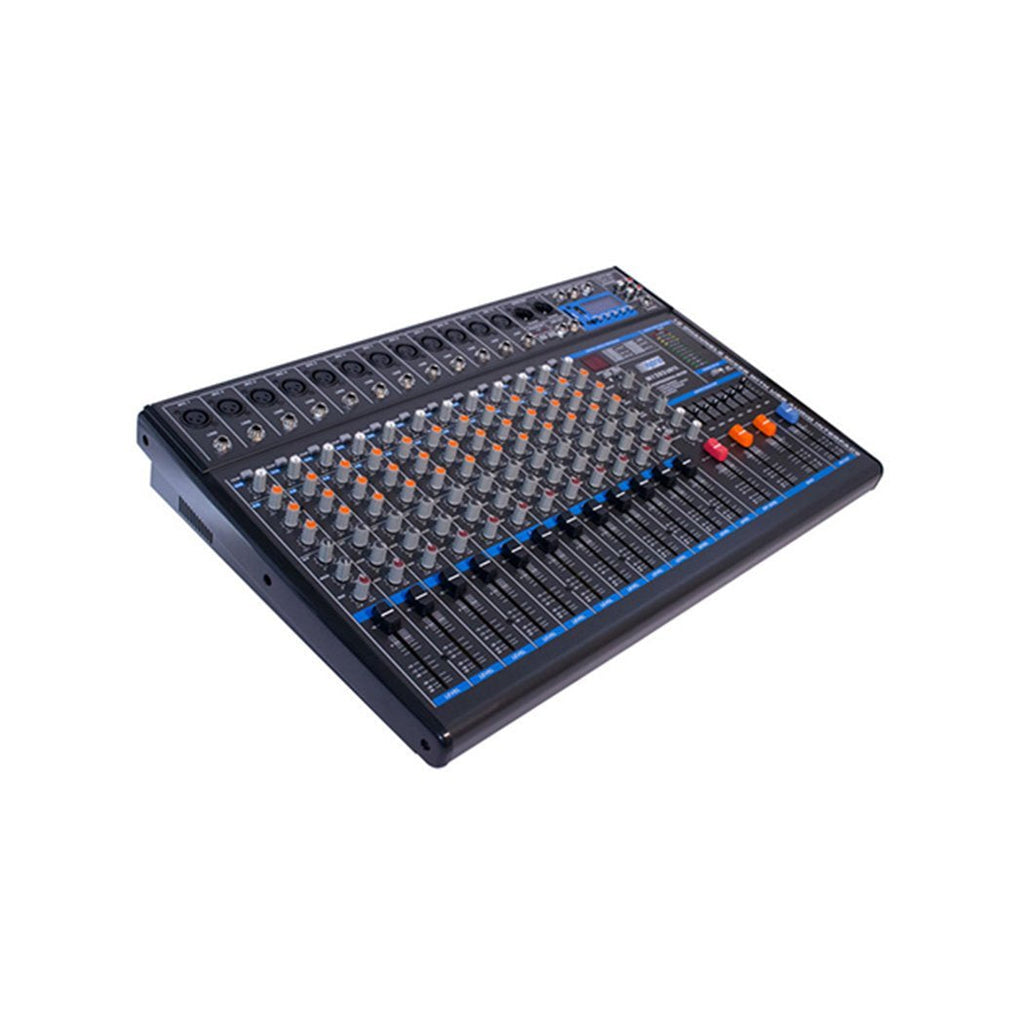

Item Type: PA Mixer
